BSD Fabrication & Works Warlock QD Suppressor Mount

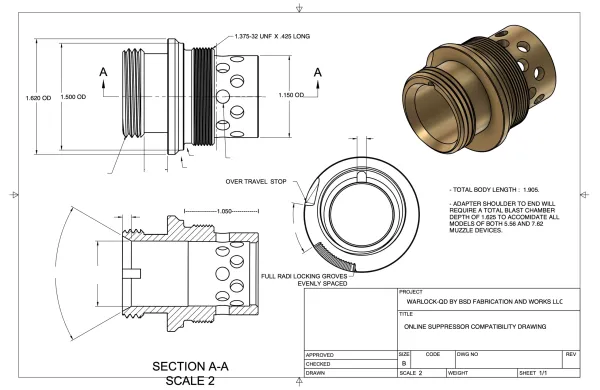

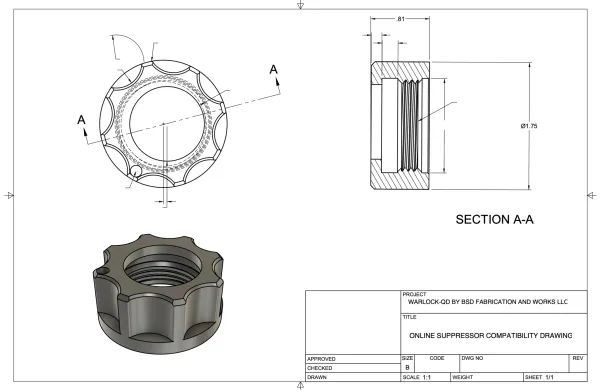

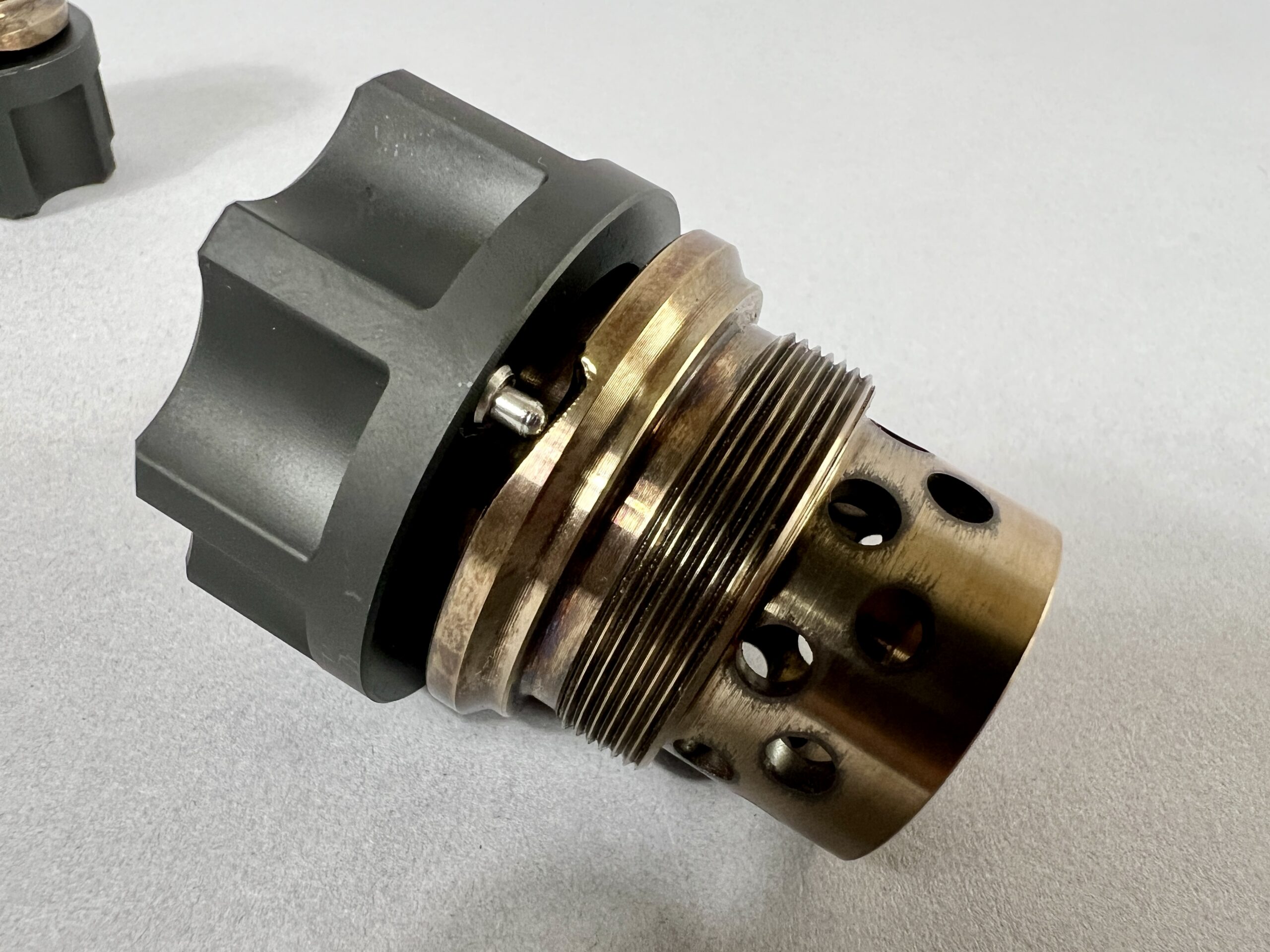

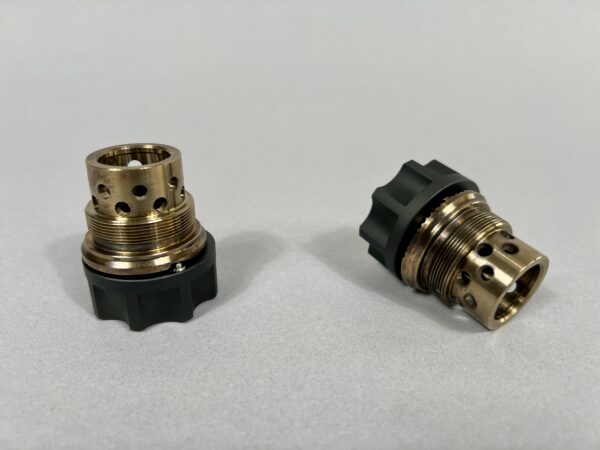

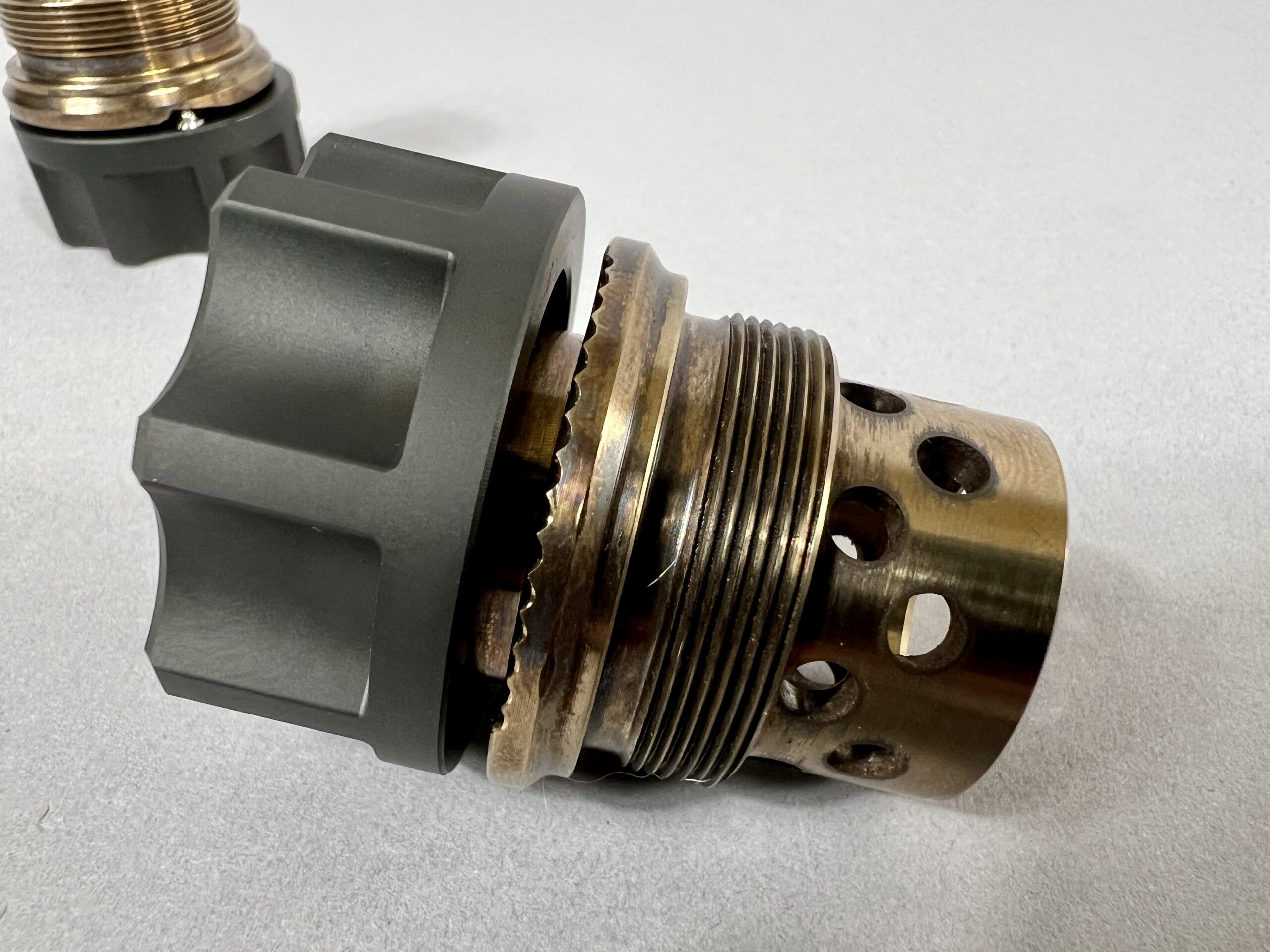

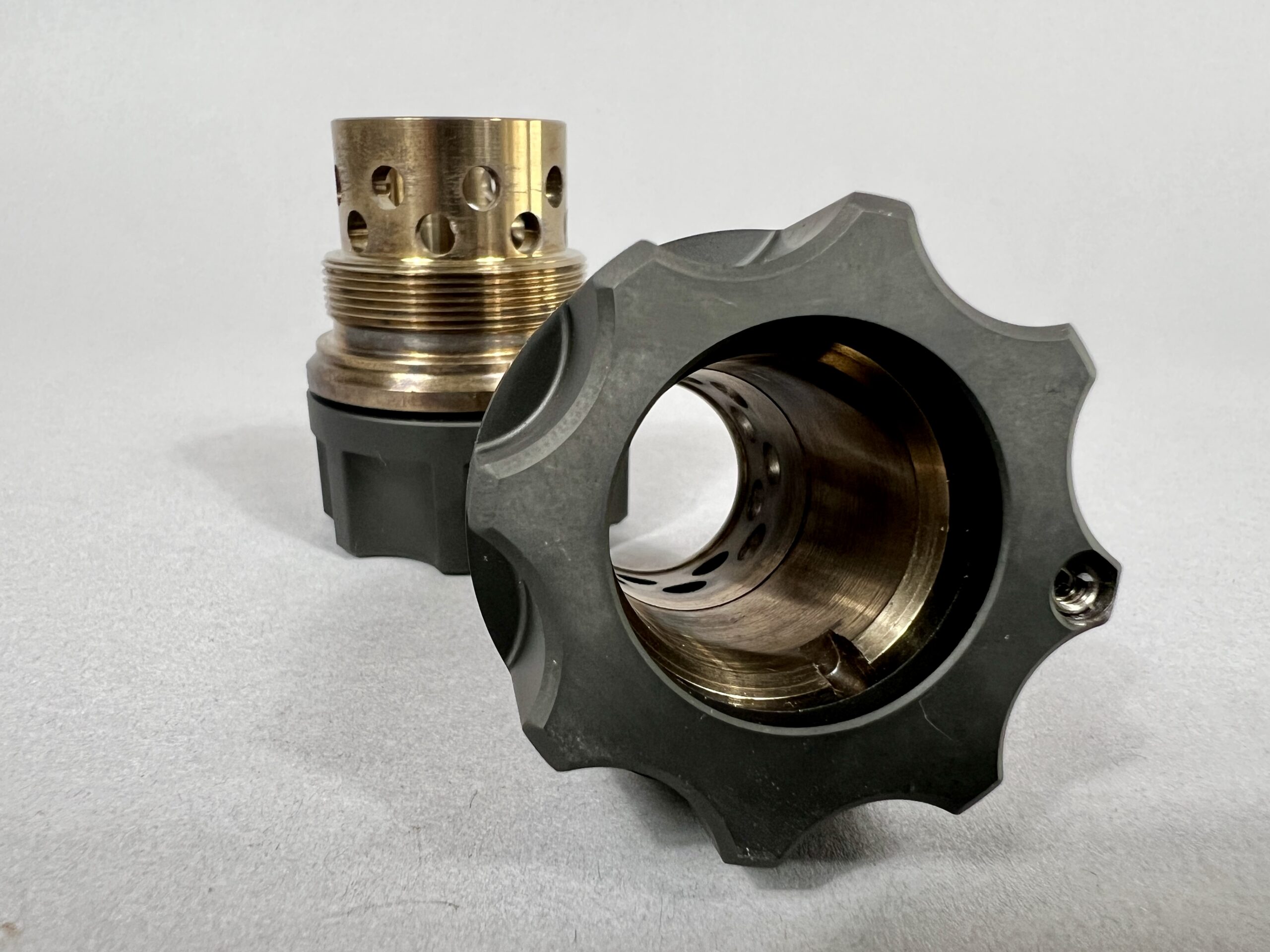

These WARLOCK-QD mounts are currently being released in small batches. They will fit BOTH 5.56 and 7.62 muzzle devices. They come standard with HUB/ASR -1.375 x 24 tpi threads for industry standard mounting threads on suppressor tubes. Other thread pitches and adapter styles will be offered in the future. You will need a suppressor blast chamber depth of approximately 1.625″ to fit with ALL muzzle devices. Currently a p51+ DLC coating will be the standard coating available on the caps and other color options will be available as well later on. They are also machined from solid 17-4 stainless steel and will be heat treated. Titanium mount bodies will be available later on as an upgraded light weight option. The custom Spring detent (force to overcome) locking design allows easy replacement of parts should any damage occur to the mount body, cap, or locking mechanism. They are approximately 7 ounces and lighter weight options (titanium) will be available later on as well. Potentially 3D printed versions will be offered in the future.

• SF MD QD adapter to BRAVO/HUB thread (1.375″ x 24 TPI)
• Easy toolless disassembly for cleaning
• HT Solid 17-4 stainless steel construction
• DLC coated caps
• Simple robust design with only 3 parts in total
• NEARLY indestructible
• Belt-Fed full auto rated
• Fits BOTH 5.56 MDs AND 7.62 MDs
• Anti-carbon lock features
• Requires a blast chamber depth of 1.625″ min for 7.62 MDs without the BSD extension adapter.

Full mounting kits available soon as well.
